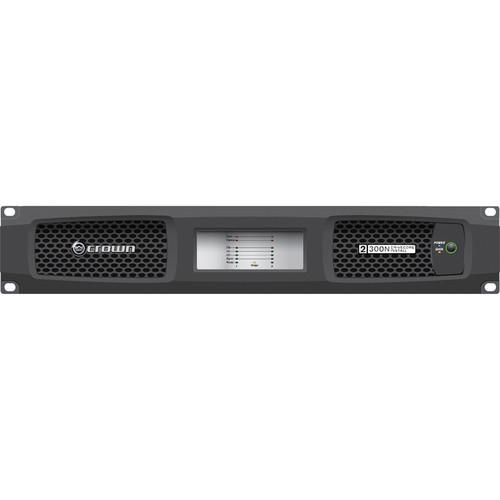

User Manual for Crown Audio DriveCore Install 2|300N 2-Channel Network Amplifier 300 Watts x 2 Click to enlarge the picture
Contents of the user manual for the Crown Audio DriveCore Install 2|300N 2-Channel
- Product category: Standard Amplifiers Crown Audio
- Brand: Crown Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Crown Audio Standard Amplifiers
|
User manual for the Crown Audio DriveCore Install 2|300N 2-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Crown Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Crown Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Crown Audio product will considerably shorten its lifespan!
|
Product description The DriveCore Install 2|300N 2-Channel Network Amplifier 300 Watts x 2 from Crown Audio is capable of producing 300 watts of output per channel at 4 or 8 ohms or 70 or 100 volts rms. It is compatible with Harman's BLU-Link digital audio transport and accepts digital inputs via its rear-panel RJ-45 connectors. This digital control allows for networked monitoring, recallable presets, and the setup of secondary inputs that engage if the primary inputs fail. The 2|300N also has built-in DSP capabilities including limiting, input/output EQs, delay, and a matrix mixer.
Its two channels can be bridged for powering higher power applications such as a subwoofer. The 2|300N also has channel-independent high- or low-impedance output that is selectable from the rear-panel DIP switches. This allows you to integrate the amplifier into a variety of different setups. Each of its 2 channels additionally features independent attenuators with an attenuation range from 0 to -80dB.
The front panel of the 2|300N provides a series of system indicators, including level and signal, ready, clip, thermal, and fault alerts for quick visual monitoring of the system. The unit can be integrated into a control system for powering on and off as well as engaging its sleep mode for saving energy when not in use. The 2|300N is rackmountable and requires 2 rack units of space - Network Monitoring & Control
- Monitoring, control and audio manipulation are provided with the HiQnet protocol that's over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.
- Programmable General Purpose Input/Output Ports
- GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer
- DSP
- DSP includes LevelMAX limiters, input/output EQ, delay, matrix mixer, and speaker line monitoring
- Direct Drive Constant Voltage
- You can use smaller-gauge wiring to drive the speakers using either 70Vrms or 100Vrms. With no need for a step-up transformer at the output, the DCi produces audio more efficiently
- Channel-Independent Hi-Z/Low-Z Selection
- Drive either one or two speakers in low-Z mode, or literally hundreds of speakers in hi-Z mode (70 Vrms or 100 Vrms). This means design flexibility since DCi powers all loads on a channel-by-channel basis
- Bridgeable Channel Pairs
- The DriveCore Install Series channels are bridgeable, even in 100 Vrms mode, allowing them to be used to for higher-power applications like subwoofers
- Remote On/Off Interface
- The 2|300N can be integrated into a control system for remote on/off control
- Efficient Cooling Design
- Efficient internal cooling fans provide airflow to the most heat-generating parts. Incorporating the fans into the amplifier brick design maximizes cooling while minimizing wasted energy and noise
- Auto Standby
- The 2|300N automatically goes into sleep mode after 30 minutes of no input signal
- TLC Protection
- The amp has built-in protection from excessive heat by applying gain reduction when necessary
- Advanced Protection Circuits
- Amplifier and loads are protected against shorted outputs, DC, mismatched loads, overheating, over- or under-voltage, and high-frequency overload
UPC: 871015007199 In the Box Crown Audio DriveCore Install 2|300N 2-Channel Network Amplifier 300 Watts x 2 2 x Male Input Connectors Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Crown Audio DriveCore Install 2|300N 2-Channel Network Amplifier 300 Watts x 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCrown Audio DCI 2300N Specs | Inputs | 2x Balanced 3-pin block connectors | | Outputs | 2x 2-pin terminal strips | | Output Power | Dual Mode:
@ 2 Ω: 150 W (Per Channel)
@ 4 Ω: 300 W (Per Channel)
@ 8 Ω: 300 W (Per Channel)
@ 16 Ω: 150 W (Per Channel)
@ 70 Vrms: 300 W (Per Channel)
@ 100 Vrms: 300 W (Per Channel)
Bridge Mono Mode:
@ 4 Ω: 600 W
@ 8 Ω: 600 W
@ 16 Ω: 300 W
@ 140 Vrms: 600 W
@ 200 Vrms: 600 W | | Digital Connections | 2x RJ-45 BLU-Link Connections
1x RJ-45 Network Monitoring and Control Connection
1x RJ-11 General Purpose Input/Output Connection (2 ins and 2 outs) | | Voltage Gain | 4/8 Ω Operation: 34 dB
70 V Operation: 34 dB
100 V Operation: 34 dB | | Input Sensitivity | 2/4/8 Ω: 1 V
70 V: 1.4 V
100 V: 2 V | | Frequency Response | 20 Hz to 20 kHz @ 1 W: +/- 0.25 dB | | Signal to Noise Ratio | > 108 dB (ref rated power, 8 Ω, 20 Hz to 20 kHz) | | Total Harmonic Distortion | < 0.35% (@ full rated power, from 20 Hz to 20 kHz) | | Intermodulation Distortion | ≤ 0.35% (60 Hz an 7 kHz @ 4:1, from -30 dB to full-rated power) | | Damping Factor | > 900 (20 to 100 Hz) | | Crosstalk | > 80 dB (below rated power, 20 to 1 kHz) | | CMRR | > 70 dB (20 to 1 kHz) | | DC Output Offset | ± 10 mV (with inputs shorted) | | Input Impedance | 10 kΩ (nominally balanced)
5 kΩ (nominally unbalanced) | | Maximum Input Level | + 20 dBu (before compression)
+ 26 dBu (before clipping) | | Required AC Mains | 100 V to 240 V, 50/60 Hz | | Cooling | Continuously variable-speed forced air, front-to-back airflow | | Load Impedance | Stereo/Dual Mode: 2 to 16 Ω, 70 Vrms, 100 Vrms
Bridged Mono: 4 to 16 Ω, 140 Vrms, 200 Vrms | | Dimensions (W x H x D) | 19 x 3.5 x 14.25" (48.3 x 8.9 x 36.2 cm) | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 22.0 x 20.5 x 8.0" |
